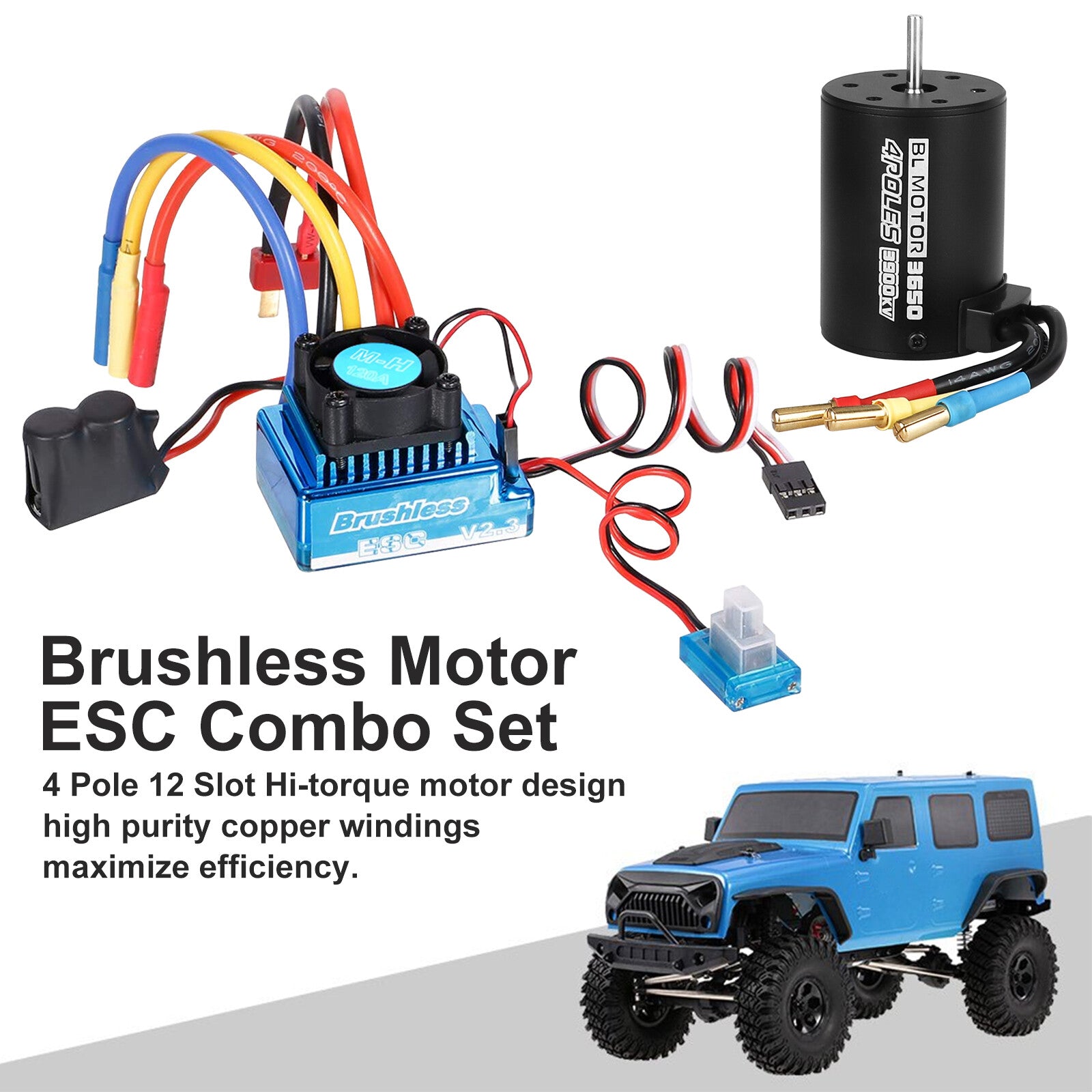

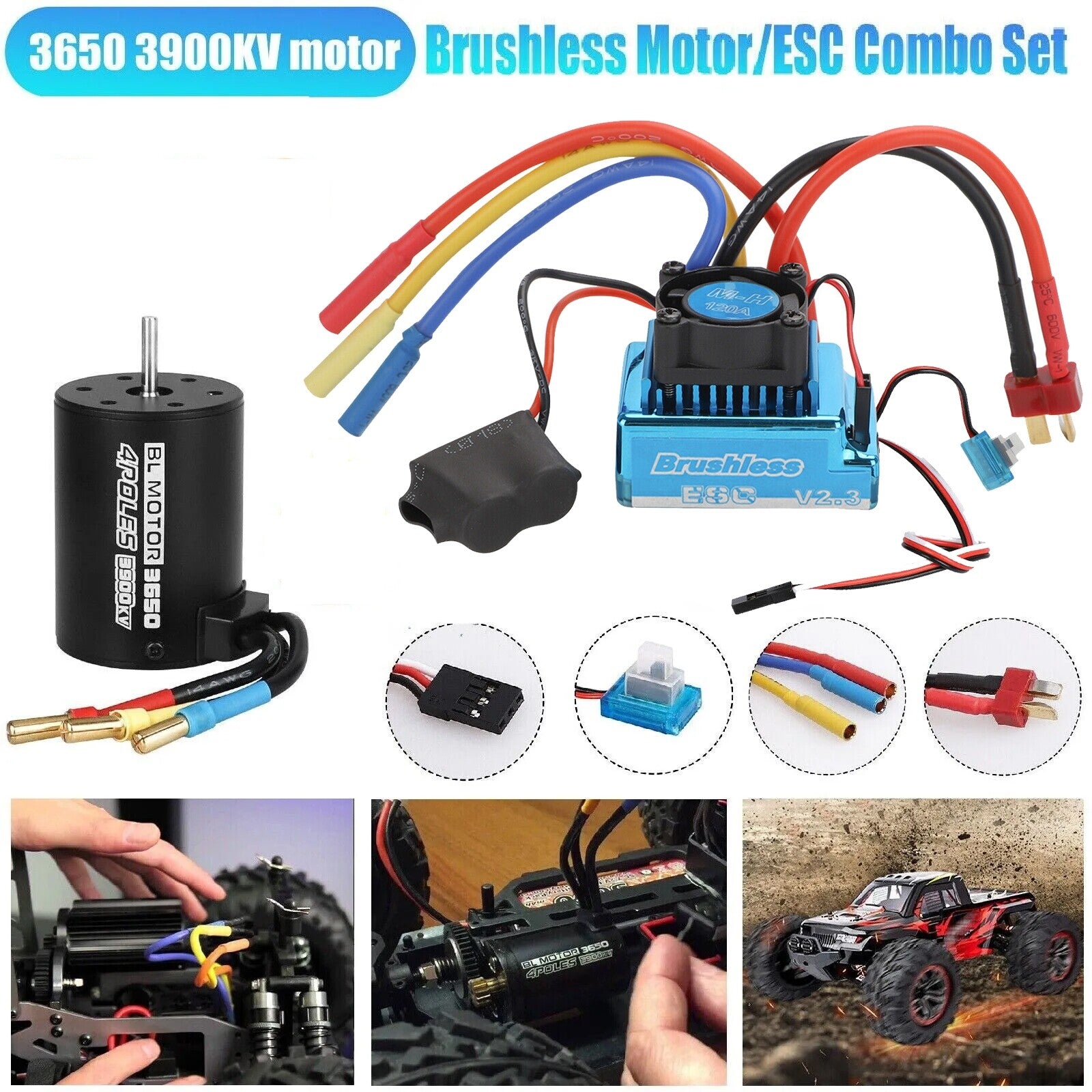

3650 3900KV Brushless Motor 120A ESC Combo Set for 1/10 RC Car Truck Accessories

3650 3900KV Brushless Motor 120A ESC Combo Set for 1/10 RC Car Truck Accessories

$49.95 USD
$65.95 USD $49.95 USD
Sale Sold out
Shipping calculated at checkout.

Product Feature

  • High-quality material is durable and eco-friendly. 4 poles with 12 slots design provides high torque and efficiency. Copper windings with high purity can maximize efficiency.
  • Precision balanced rotor, smoothness for best reliability and maximum RPM.
  • ESC has enhanced throttle response, excellent acceleration, powerful interruptions, and super smooth and accurate throttle linearity.
  • Dual-ball bearings design. (The programming card is not included)
  • Multiple protection features: Low voltage cut-off protection, over-heat protection, throttle signal loss protection.

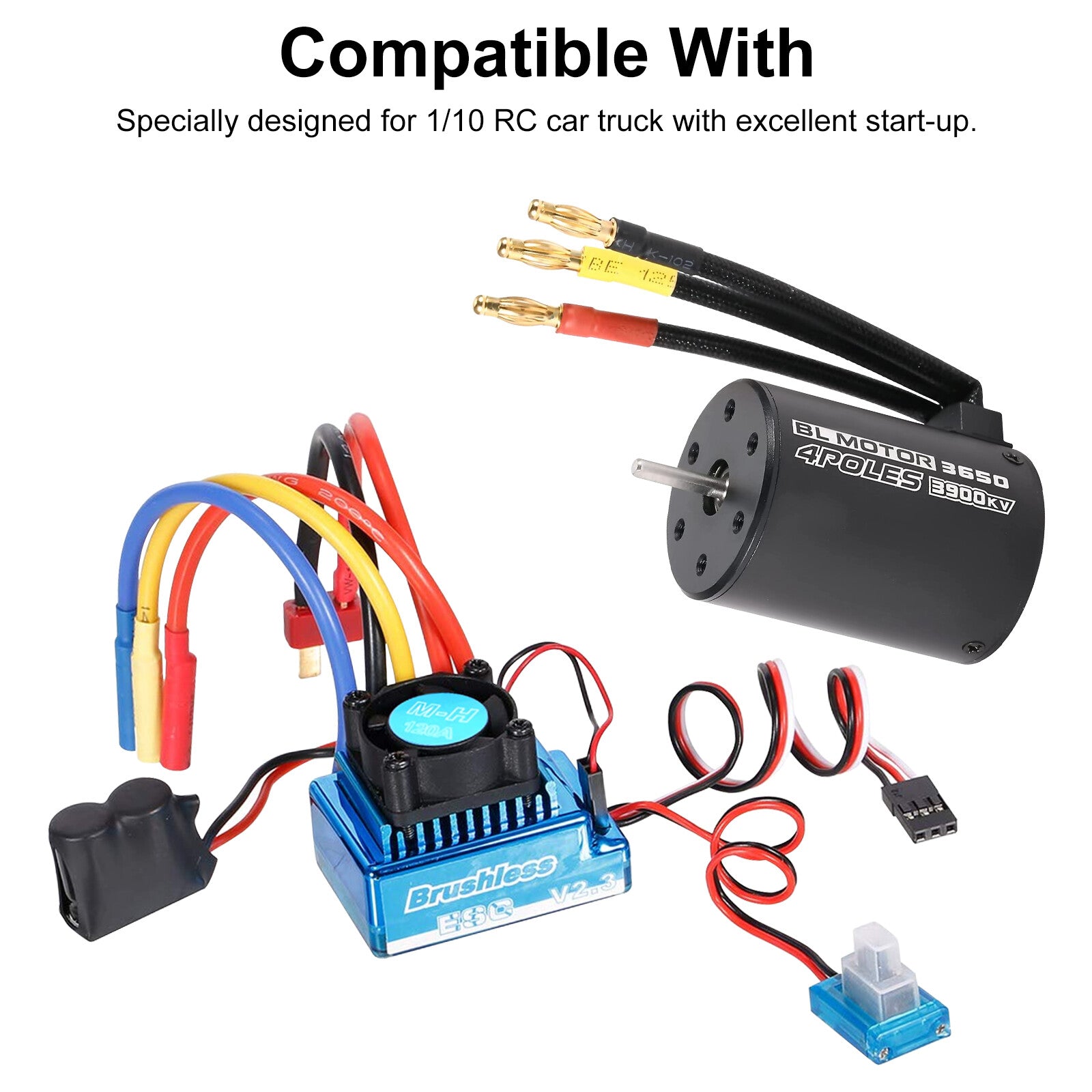

  • Premium RC car upgrade parts, suitable for most 1:8, 1:10, and 1:12 remote control cars.
  • Note: The battery is suitable for 2S battery. But try not to use 3S battery. When using 3S battery, the motor needs to be replaced with one below 3000KV.

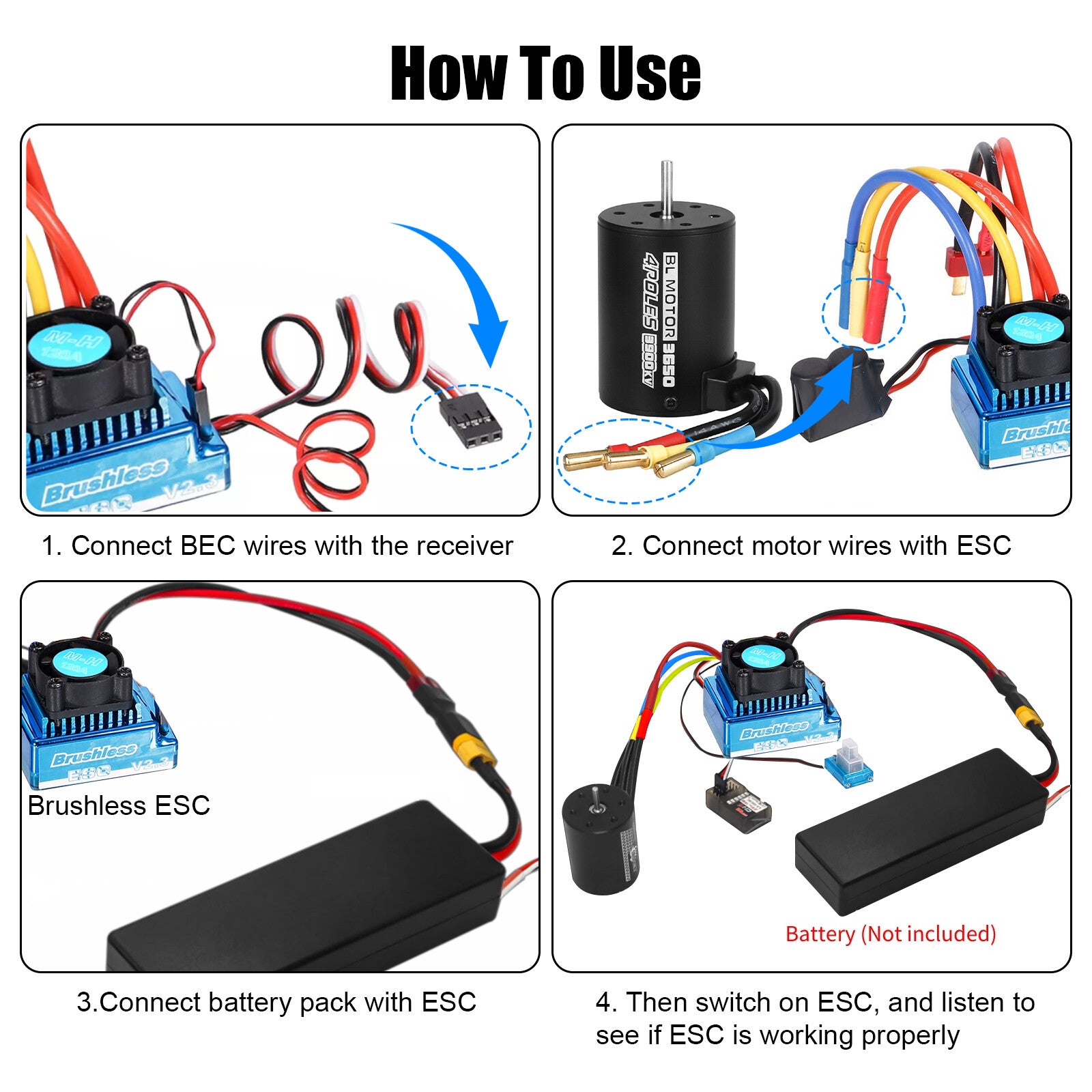

How To Use
  • 1. Connect BEC wires with the receiver.
  • 2. Connect motor wires with ESC.
  • 3. Turn on the transmitter.
  • 4. Connect battery pack (not included) with ESC then switch on the ESC.
  • 5.When the connection of motor and battery is finished, the motor emits "Beep-Beep" tone.
  • 6. When the throttle stick is in the neutral position, the motor re-emits "Beep-Beep" tone.
  • 7. The ESC is workable.

Product Specification

3650-3900kv Motor
Watts
900W
Max Voltage
<13V
Max Amps
69A
KV(RPM/Volt)
3900K
Max RPM
50000

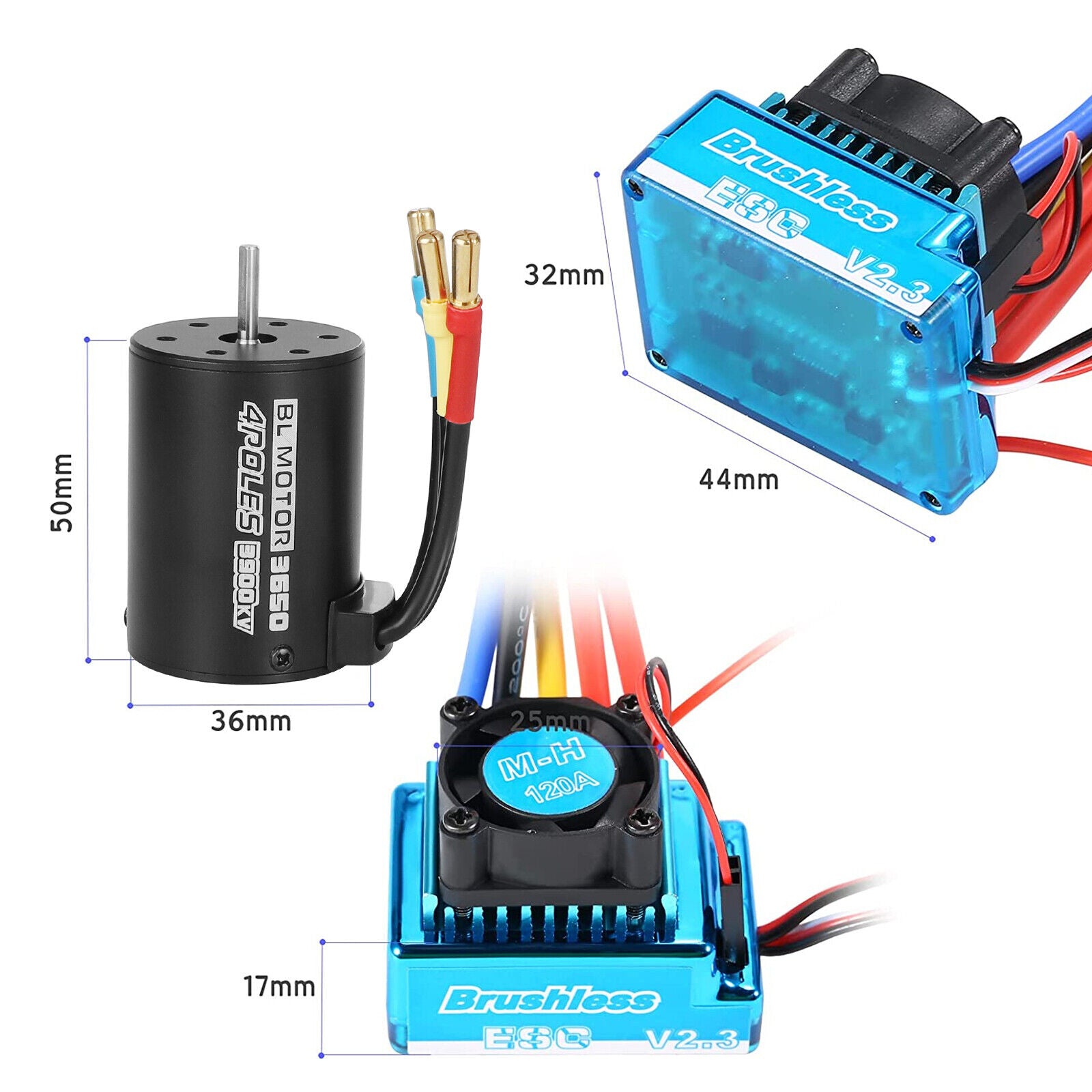

Diameter
36mm
Length
50mm
Shaft Length
15mm

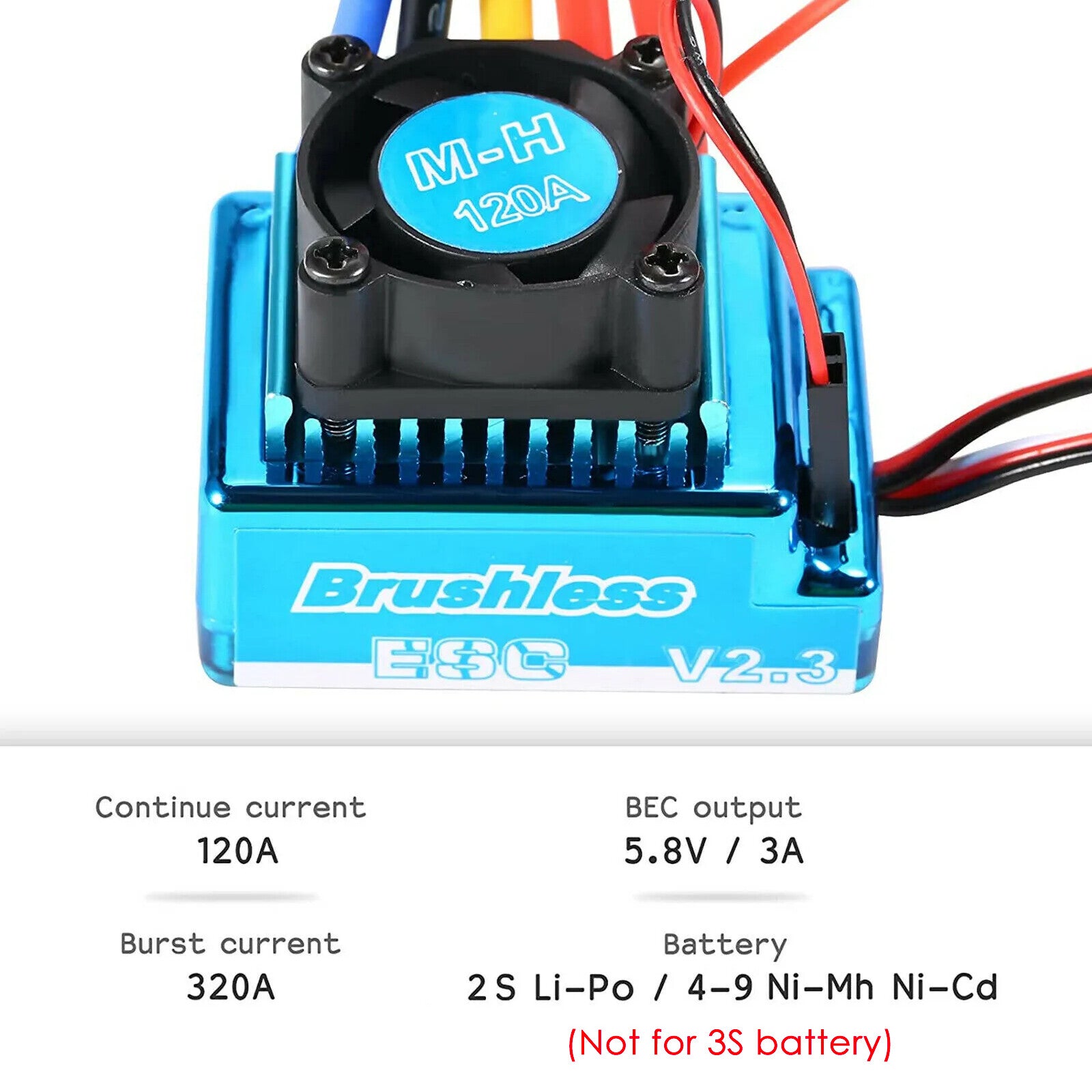

120A ESC
Continue Current
120A
Burst Current
320A
Battery
2S Li-Po / 4-9S Ni-Mh Ni-Cd
BEC Output
5.8V / 3A

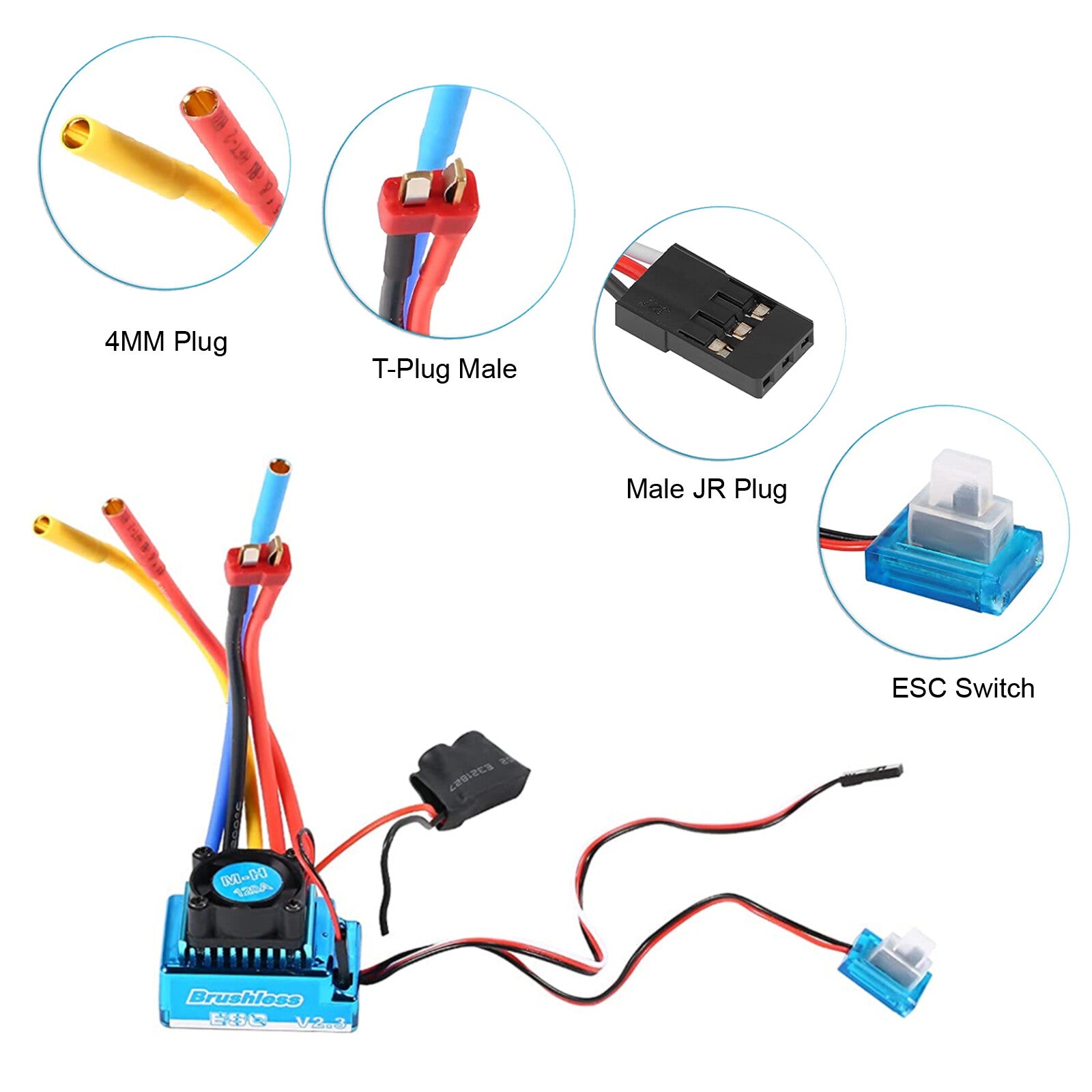

Power Supply Plugs
T plug male

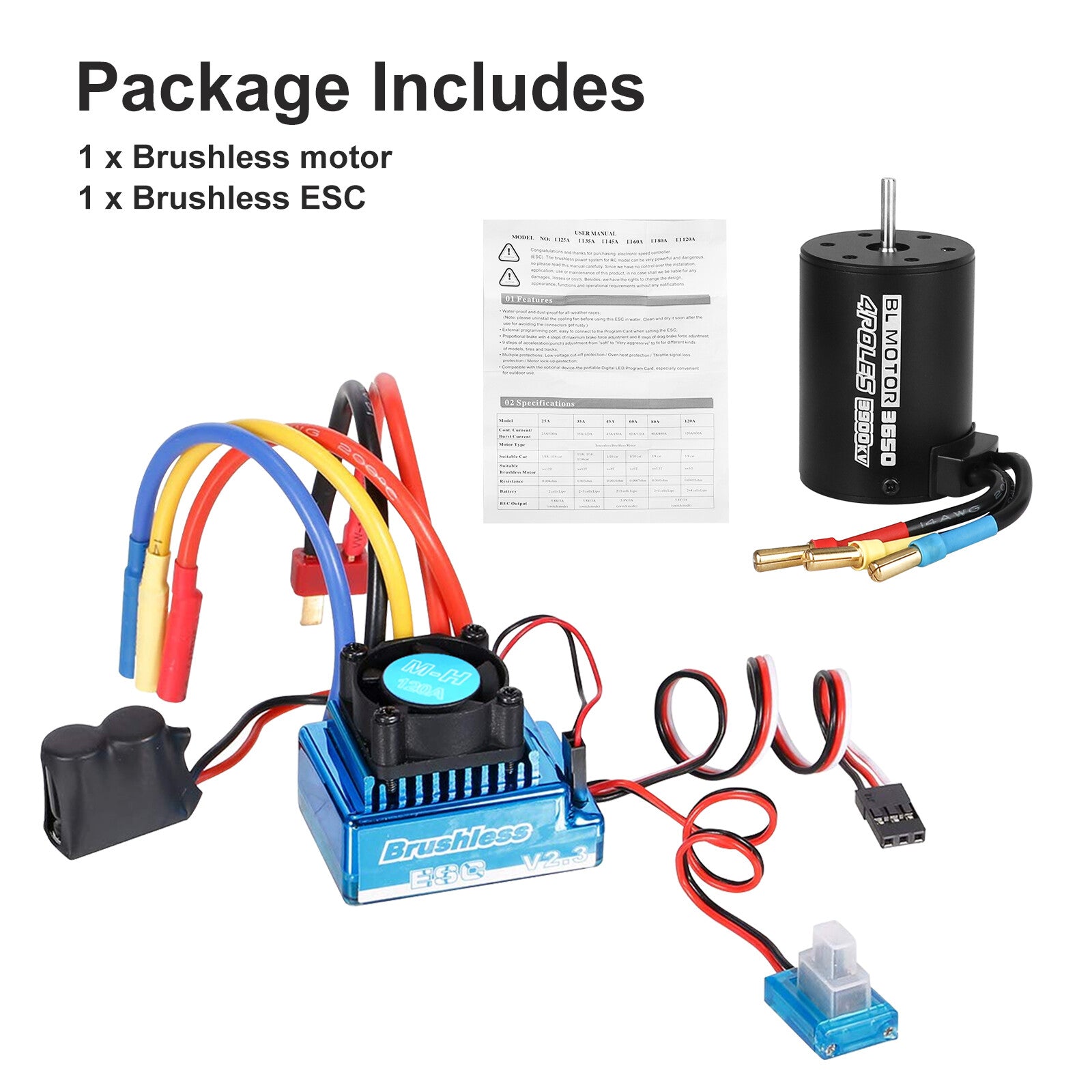

Package Included

  • 1 x Brushless Motor
  • 1 x Brushless ESC
